Kody diagnostyczne i serwisowe Bobcat - lista błędów i rozwiązań
Diagnostyka Bobcat - odczyt i interpretacja kodów usterek
Maszyny Bobcat wyposażone są w system elektroniczny, który monitoruje parametry pracy i zgłasza wszelkie nieprawidłowości w formie kodów błędów. Dzięki temu operator może szybko zidentyfikować problem i podjąć odpowiednie działania, aby uniknąć awarii lub dłuższego przestoju.
⚠️ Uwaga: Zanim przystąpisz do naprawy lub serwisu, zawsze skonsultuj się z Instrukcją Obsługi i Konserwacji swojej maszyny Bobcat.
Obsługiwane maszyny - zakres kodów diagnostycznych Bobcat:
Ładowarki serii M: od S450 do S850, od T450 do T870
Ładowarki serii R: od S60 do S70, od T60 do T70
Minikoparki serii M: od E26 do E85
Koparki E145 i E165
Ładowarki przegubowe kompaktowe (SAL)
Maszyny wielofunkcyjne Toolcat
Ładowarki kołowe kompaktowe
Ładowarki teleskopowe Bobcat
Osprzęt Bobcat
Diagnostyka silników Bobcat:
Silniki Bobcat V1 (ECU DELPHI)
Silniki Bobcat V2 (ECU BOSCH)
Silniki Bobcat D34 (DCU)
Dlaczego warto?
Specjalizujemy się w diagnostyce Bobcat, naprawach i optymalizacji pracy maszyn. Pomagamy zarówno w szybkim rozwiązywaniu problemów z kodami błędów, jak i w zapobieganiu przyszłym usterkom.
📞 Skontaktuj się z nami, jeśli potrzebujesz profesjonalnej interpretacji kodów serwisowych Bobcat lub kompleksowego wsparcia diagnostycznego.
Bobcat Diagnostic Service Codes provide operators with a clear way to identify and troubleshoot machine issues. Covering loaders, excavators, telehandlers, and engines (Delphi, Bosch, DCU), these codes improve efficiency and minimize downtime. If you need help interpreting a fault code, our team can assist with diagnostics, repair, and machine optimization.
| Code | Product | Description | ||||||
| B1001-96 | Compact Wheel Loader | Key Switch Failure | ||||||
| B1001-96 | Toolcat | Key Switch - Component Internal Failure | ||||||
| B1005-00 | M-Series Loader | Key Switch Multiple | ||||||
| B1005-00 | Compact Wheel Loader | Key Switch Multiple | ||||||
| B102A-16 | Toolcat | Cab Controller Sensor Supply - Circuit Voltage Below Threshold | ||||||
| B102A-16 | M-Series Loader | Cab Controller Sensor Supply Voltage Out of Range Low | ||||||
| B102A-17 | M-Series Loader | Cab Controller Sensor Supply Voltage Out of Range High | ||||||
| B102A-17 | Toolcat | Cab Controller Sensor Supply - Circuit Voltage Above Threshold | ||||||
| B1030-11 | M-Series Loader | Front Work Light (Left Side) Short to Ground | ||||||
| B1030-12 | M-Series Loader | Front Work Light (Left Side) Short to Battery | ||||||
| B1030-13 | M-Series Loader | Front Work Light (Left Side) Not Connected | ||||||
| B1031-11 | M-Series Loader | Front Work Light (Right Side) Short to Ground | ||||||
| B1031-12 | M-Series Loader | Front Work Light (Right Side) Short to Battery | ||||||
| B1031-13 | M-Series Loader | Front Work Light (Right Side) Not Connected | ||||||
| B1034-11 | Toolcat | Rear Work Lights - Circuit Short to Ground | ||||||
| B1034-11 | Compact Wheel Loader | Rear Work Light Short to Battery | ||||||
| B1034-12 | M-Series Loader | Rear Work Lights Error On | ||||||
| B1034-12 | Toolcat | Rear Work Lights - Circuit Short to Battery | ||||||
| B1034-12 | Compact Wheel Loader | Rear Work Light Short to Ground | ||||||
| Code | Product | Description | ||||||
| B1034-13 | Toolcat | Rear Work Lights - Circuit Open | ||||||
| B1034-13 | Compact Wheel Loader | Rear Work Light Not Connected | ||||||
| B1034-14 | M-Series Loader | Rear Work Lights Error Off | ||||||
| B1035-12 | M-Series Loader | Rear Marker Light Short to Battery | ||||||
| B1035-14 | M-Series Loader | Rear Marker Light Short to Ground or Open Circuit | ||||||
| B1036-11 | Toolcat | Rear Marker Lights - Circuit Short to Ground | ||||||
| B1036-12 | Toolcat | Rear Marker Lights - Circuit Short to Battery | ||||||
| B1036-12 | M-Series Loader | Rear Tail Lights Error On | ||||||
| B1036-13 | Toolcat | Rear Marker Lights - Circuit Open | ||||||
| B1036-14 | M-Series Loader | Rear Tail Lights Error Off | ||||||
| B1037-11 | Toolcat | Stop Lights - Circuit Short to Ground | ||||||
| B1037-11 | Compact Wheel Loader | Stop Light Short to Ground | ||||||
| B1037-12 | M-Series Loader | Stop Lamp Short to Battery | ||||||
| B1037-12 | Toolcat | Stop Lights - Circuit Short to Battery | ||||||
| B1037-13 | Toolcat | Stop Lights - Circuit Open | ||||||
| B1037-14 | M-Series Loader | Stop Lamp Short to Ground or Open Circuit | ||||||
| B1037-15 | Compact Wheel Loader | Stop Light Error On | ||||||
| B1038-12 | M-Series Loader | Registration Plate Lamp Short to Battery | ||||||
| B1038-14 | M-Series Loader | Registration Plate Lamp Short to Ground or Open Circuit | ||||||
| B1039-11 | M-Series Loader | Side Lights Short to Ground | ||||||
| B1039-12 | M-Series Loader | Side Lights Short to Battery | ||||||
| B1039-13 | M-Series Loader | Side Lights Not Connected | ||||||
| B103B-12 | Small Articulated Loader | Light Circuit Short to Battery | ||||||
| B103B-14 | Small Articulated Loader | Light Circuit Short to Ground | ||||||
| B103D-11 | Compact Wheel Loader | Beacon Short to Ground | ||||||
| B103D-12 | Compact Wheel Loader | Beacon Short to Battery | ||||||
| B103D-12 | Toolcat | Beacon Light - Circuit Short to Battery | ||||||
| B103D-13 | Compact Wheel Loader | Beacon Not Connected | ||||||
| B103D-14 | Toolcat | Beacon Light - Circuit Short to Ground or Open | ||||||
| B1040-11 | Compact Wheel Loader | Buzzer Error Off | ||||||
| B1040-12 | Compact Wheel Loader | Buzzer Error On | ||||||
| B1040-12 | Toolcat | Buzzer - Circuit Short to Battery | ||||||
| B1040-14 | Toolcat | Buzzer - Circuit Short to Ground or Open | ||||||
| B1040-14 | M-Series Loader | Buzzer Error Off | ||||||
| B1041-12 | Toolcat | Backup Alarm - Circuit Short to Battery | ||||||
| B1041-12 | Compact Wheel Loader | Backup Alarm Error Off | ||||||
| B1041-12 | M-Series Loader | Backup Alarm Error On | ||||||
| B1041-14 | M-Series Loader | Backup Alarm Error Off | ||||||
| B1041-14 | Compact Wheel Loader | Backup Alarm Error On | ||||||
| B1041-14 | Toolcat | Backup Alarm - Circuit Short to Ground or Open | ||||||
| B1042-12 | Toolcat | Horn Output - Circuit Short to Battery | ||||||
| B1042-12 | M-Series Loader | Horn Relay Short to Battery | ||||||
| B1042-14 | Toolcat | Horn Output - Circuit Short to Ground or Open | ||||||
| B1042-14 | M-Series Loader | Horn Relay Short to Ground or Open Circuit | ||||||
| B104A-11 | Compact Wheel Loader | Seat Heater Short to Ground | ||||||
| B104A-12 | Compact Wheel Loader | Seat Heater Short to Battery | ||||||
| B104A-13 | Compact Wheel Loader | Seat Heater Open Circuit | ||||||
| B1050-12 | M-Series Loader | HVAC Output Short to Battery | ||||||
| B1050-12 | Toolcat | HVAC Output - Circuit Short to Battery | ||||||
| B1050-14 | M-Series Loader | HVAC Output Short to Ground or Open Circuit | ||||||
| B1050-14 | Toolcat | HVAC Output - Circuit Short to Ground or Open | ||||||
| B1051-93 | M-Series Loader | HVAC Inside Sensor In Error | ||||||
| Code | Product | Description | ||||||
| B1052-93 | M-Series Loader | HVAC Device Sensor In Error | ||||||
| B1053-93 | M-Series Loader | HVAC Coil Sensor In Error | ||||||
| B1054-11 | M-Series Loader | HVAC Clutch Output Error Off | ||||||
| B1054-12 | M-Series Loader | HVAC Clutch Output Error On | ||||||
| B1054-13 | M-Series Loader | HVAC Clutch Output Open Circuit | ||||||
| B1054-19 | M-Series Loader | HVAC Clutch Output Overcurrent | ||||||
| B1055-93 | M-Series Loader | HVAC Water Valve In Error | ||||||
| B105A-12 | Toolcat | Front Window Defroster Output - Circuit Short to Battery | ||||||
| B105A-14 | Toolcat | Front Window Defroster Output - Circuit Short to Ground or Open | ||||||
| B1060-93 | M-Series Loader | Lift Pedal In Error | ||||||
| B1060-F0 | M-Series Loader | Lift Pedal Not in Neutral | ||||||
| B1061-16 | M-Series Loader | Lift Pedal Sensor A Out of Range Low | ||||||
| B1061-17 | M-Series Loader | Lift Pedal Sensor A Out of Range High | ||||||
| B1062-16 | M-Series Loader | Lift Pedal Position Sensor "B" Out of Range Low | ||||||
| B1062-17 | M-Series Loader | Lift Pedal Position Sensor "B" Out of Range High | ||||||
| B1063-00 | M-Series Loader | Lift Pedal Sensor In Error | ||||||
| B1064-F0 | Compact Wheel Loader | Lift Input Not in Neutral | ||||||
| B1064-F0 | M-Series Loader | Lift Joystick Not in Neutral | ||||||
| B1065-F0 | M-Series Loader | Lift Input Not in Neutral | ||||||
| B1070-09 | M-Series Loader | Tilt Pedal Failure | ||||||
| B1070-93 | M-Series Loader | Tilt Pedal In Error | ||||||
| B1070-F0 | M-Series Loader | Tilt Pedal Not in Neutral | ||||||
| B1071-16 | M-Series Loader | Tilt Pedal Sensor A Out of Range Low | ||||||
| B1071-17 | M-Series Loader | Tilt Pedal Sensor A Out of Range High | ||||||
| B1072-16 | M-Series Loader | Tilt Pedal Position Sensor "B" Out of Range High | ||||||
| B1072-17 | M-Series Loader | Tilt Pedal Position Sensor "B" Out of Range Low | ||||||
| B1073-00 | M-Series Loader | Tilt Pedal Sensor In Error | ||||||
| B1074-F0 | Compact Wheel Loader | Tilt Input Not in Neutral | ||||||
| B1074-F0 | M-Series Loader | Tilt Joystick Not in Neutral | ||||||
| B1075-F0 | M-Series Loader | Tilt Input Not in Neutral | ||||||
| B1080-09 | Toolcat | Operator Presence - Component Failure | ||||||
| B1080-09 | Compact Wheel Loader | Operator Presence Component Failure | ||||||
| B1080-09 | M-Series Loader | Seat Bar Failure | ||||||
| B1080-16 | Compact Wheel Loader | Operator Presence Circuit Voltage Below Threshold | ||||||
| B1080-16 | Toolcat | Operator Presence - Circuit Voltage Below Threshold | ||||||
| B1080-16 | Small Articulated Loader | Armrest Out of Range Low | ||||||
| B1080-16 | M-Series Loader | Seat Bar Out of Range Low | ||||||
| B1080-17 | M-Series Loader | Seat Bar Out of Range High | ||||||
| B1080-17 | Small Articulated Loader | Armrest Out of Range High | ||||||
| B1080-17 | Compact Wheel Loader | Operator Presence Circuit Voltage Above Threshold | ||||||
| B1080-17 | Toolcat | Operator Presence - Circuit Voltage Above Threshold | ||||||
| B1080-54 | Small Articulated Loader | Armrest No Signal | ||||||
| B1080-66 | Small Articulated Loader | Armrest Intermittent Signal | ||||||
| B1090-00 | M-Series Loader | Door Open | ||||||
| B1091-16 | M-Series Loader | Door Sensor Out of Range Low | ||||||
| B1095-13 | M-Series Loader | Window Sensor Open Circuit | ||||||
| B1095-16 | M-Series Loader | Window Sensor Out of Range Low | ||||||
| B1095-17 | M-Series Loader | Window Sensor Out of Range High | ||||||
| B1095-95 | M-Series Loader | Window Sensor Failure | ||||||
| B10A0-12 | M-Series Loader | Wiper Output Short to Battery | ||||||
| B10A0-12 | Toolcat | Wiper Output - Circuit Short to Battery | ||||||
| B10A0-14 | M-Series Loader | Wiper Output Short to Ground or Open Circuit | ||||||
| Code | Product | Description | ||||||
| B10A0-14 | Toolcat | Wiper Output - Circuit Short to Ground or Open | ||||||
| B10A1-12 | Toolcat | Washer Fluid Output - Circuit Short to Battery | ||||||
| B10A1-12 | M-Series Loader | Washer Fluid Output Short to Battery | ||||||
| B10A1-14 | Toolcat | Washer Fluid Output - Circuit Short to Ground or Open | ||||||
| B10A1-14 | M-Series Loader | Washer Fluid Output Short to Ground or Open Circuit | ||||||
| B10A2-11 | Compact Wheel Loader | Front Wiper Short to Ground | ||||||
| B10A2-12 | Compact Wheel Loader | Front Wiper Short to Battery | ||||||
| B10A2-13 | Compact Wheel Loader | Front Wiper Not connected | ||||||
| B10A3-11 | Compact Wheel Loader | Front Wiper High Speed Short to Ground | ||||||
| B10A3-12 | Compact Wheel Loader | Front Wiper High Speed Short to Battery | ||||||
| B10A3-13 | Compact Wheel Loader | Front Wiper High Speed Not connected | ||||||
| B10A5-11 | Compact Wheel Loader | Rear Wiper Short to Ground | ||||||
| B10A5-12 | Compact Wheel Loader | Rear Wiper Short to Battery | ||||||
| B10A5-13 | Compact Wheel Loader | Rear Wiper Not Connected | ||||||
| B10A7-11 | Compact Wheel Loader | Front Washer Short to Ground | ||||||
| B10A7-12 | Compact Wheel Loader | Front Washer Short to Battery | ||||||
| B10A7-13 | Compact Wheel Loader | Front Washer Not Connected | ||||||
| B10A8-11 | Compact Wheel Loader | Rear Washer Short to Ground | ||||||
| B10A8-12 | Compact Wheel Loader | Rear Washer Short to Battery | ||||||
| B10A8-13 | Compact Wheel Loader | Rear Washer Not Connected | ||||||
| B10B0-00 | M-Series Loader | Drive ISO/H Pattern Switch Flipped While Operating | ||||||
| B10B1-F0 | M-Series Loader | Drive Input Not in Neutral | ||||||
| B10B3-F0 | M-Series Loader | Drive X Input Not In Neutral | ||||||
| B10B6-F0 | M-Series Loader | Drive Y Input Not In Neutral | ||||||
| B10B9-F0 | M-Series Loader | Drive Left Input Not In Neutral | ||||||
| B10BC-F0 | M-Series Loader | Drive Right Input Not In Neutral | ||||||
| B10C0-00 | Compact Wheel Loader | Camera Not Connected | ||||||
| B10C1-00 | Toolcat | Camera Software Error | ||||||
| B10D0-11 | Toolcat | Display Switched Power Output - Circuit Short to Ground | ||||||
| B10D0-12 | Toolcat | Display Switched Power Output - Circuit Short to Battery | ||||||
| B10D0-12 | M-Series Loader | Display Switched Power Relay Error On | ||||||
| B10D0-13 | Toolcat | Display Switched Power Output - Circuit Open | ||||||
| B10D0-14 | M-Series Loader | Display Switched Power Relay Error Off | ||||||
| B10F0-11 | Compact Wheel Loader | Rear Defog Short to Ground | ||||||
| B10F0-12 | Compact Wheel Loader | Rear Defog Short to Battery | ||||||
| B10F0-13 | Compact Wheel Loader | Rear DefogCircuit Open | ||||||
| B1100-9E | Compact Wheel Loader | Power Exchange Lock Switch Stuck On | ||||||
| B1100-9E | M-Series Loader | Bobtach Engage Button Stuck On | ||||||
| B1101-9E | Compact Wheel Loader | Power Exchange Unlock Switch Stuck on | ||||||
| B1101-9E | M-Series Loader | Bobtach Disengage Button Stuck On | ||||||
| B1110-F0 | M-Series Loader | Left Primary Not in Neutral | ||||||
| B1110-F0 | Toolcat | Left Primary - Not in Neutral | ||||||
| B1111-F0 | M-Series Loader | Left Secondary Not in Neutral | ||||||
| B1111-F0 | Toolcat | Left Secondary - Not in Neutral | ||||||
| B1120-16 | Small Articulated Loader | Right Primary Out of Range Low | ||||||
| B1120-17 | Small Articulated Loader | Right Primary Out of Range High | ||||||
| B1120-F0 | Compact Wheel Loader | Joystick Right Roller Not in Neutral | ||||||
| B1120-F0 | Toolcat | Right Primary - Not in Neutral | ||||||
| B1120-F0 | M-Series Loader | Right Primary Not in Neutral | ||||||
| B1121-16 | Small Articulated Loader | Right Secondary Out of Range Low | ||||||
| B1121-17 | Small Articulated Loader | Right Secondary Out of Range High | ||||||
| B1121-F0 | Toolcat | Right Secondary - Not in Neutral | ||||||
Producent
Bobcat
Bobcat
TL25.60, V519, V623, V638, V723, V918, V923, VR518, V530C, VR638, VR723, TL30.60, TL30.70, TL34.65HF, TL38.70, TL38.70HF, TL43.80, V417, A-series, A220, A300, A770, B-series, BL-series, CT-series, DX10z, DX19, DZ17z, E-series, E08, E10, E10e, E14, E145, E16, E165, E17, E17z, E18z, E19, E19e, E20, E27, E27z, E30, E32, E32i, E34, E35, E35i, E35z, E37, E38, E40, E42, E45, E48, E50, E50z, E55, E55w, E55z, E60, E62, E63, E80, E85, E88, R-series, S-series, S100, s130, S150, S16, S175, S185, S205, S220, S250, S300, S330, S450, S510, S530, S550, S570, S590, S595, S630, S650, S740, S750, S770, S850, T-series, T110, T140, T180, T190, T200, T2250, T250, T2556, T300, T320, T35.105, T35.105L, T35.130S, T35.130SLP, T35.140S, T35100, T35105, T35130, T35140, T3571, T36120, T40140, T40170, T40180, T41.140, T450, T550, T590, T595, T630, T650, T740, T750, T770, T870, TD-series, TL-series, TL26.60, TL34.65, TL35.70, TL358, TL360, TL470, TL519, V-series, V518, VR-series, VR530, X-series, X100, X116, X130, X220, X225, X231, X316, X319, X320, X321, X322, X323, X324, X325, X328, X331, X334, X335, X337, X341, X418, X425, X428, X430, X435, X442, X444, ZX125, ZX75, 553, 641, 642, 643, 645, 653, 741, 742, 743, 751, 753, 763, 773, 843, 853, 863, 864, 873, 883, 963, 2200, 2400, 2410
Jeśli chcesz kupić bobcat Machine Diagnostic Service & Fault Codes - #B-codes (p1) , możesz:
Połączenie:
Więcej z sekcji części do Bobcat

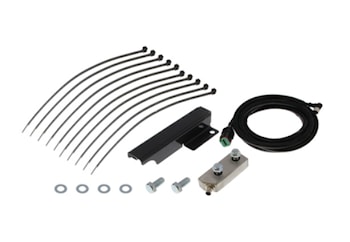

Komplet czujnika stabilności LLMS do ładowarek teleskopowych Bobcat - 7484808 Opis produktu: Oryginalny komplet czujnika LLMS Bobcat #7484808 przeznaczony jest do teleskopowych ładowarek Bobcat. Zestaw odpowiada za kontrolę stabilności maszyny oraz ...

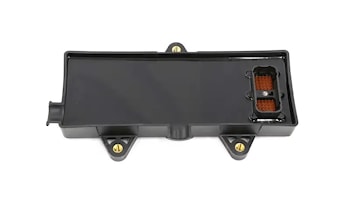

Sterownik napędu do ładowarki teleskopowej Bobcat VersaHandler Drive Controller for VersaHandler, 7273601 Oryginalny sterownik napędu Bobcat Uwaga: Sterownik nie jest zaprogramowany i wymaga obowiązkowego programowania przed instalacją. Opis ...

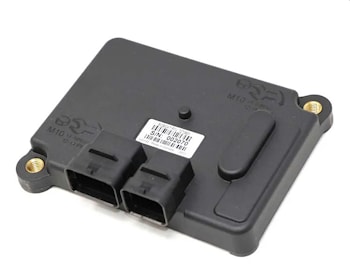

Moduł sterujący do ładowarki teleskopowej Bobcat Bobcat ECU 7273600 Bobcat TGW ECU 7273600 Sterownik TGW Bobcat 7273600 Sterownik Bobcat Uwaga: Ten sterownik wymaga zaprogramowania po instalacji. Sterownik Bobcat to główny moduł sterujący ładowarki ...
Kontroler roboczy Bobcat 7273602 - VersaHandler Oryginalny kontroler Bobcat do ładowarek teleskopowych serii VersaHandler . Element kluczowy dla działania układu sterowania funkcjami roboczymi maszyny. Odpowiada za sterowanie podzespołami roboczymi ...
Sterownik jazdy Bobcat VersaHandler - 6917025 Oryginalny sterownik jazdy Bobcat do ładowarek teleskopowych VersaHandler. Model 6917025 odpowiada za obsługę całej komunikacji elektrycznej związanej z napędem. Montowany pod konsolą, jest kluczowym ...

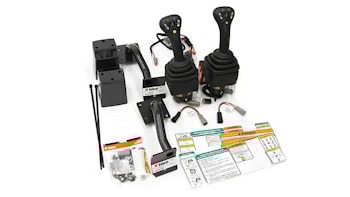

Szukasz oryginalnego joysticka do ładowarki Bobcat? Ten kompletny zestaw wymienny przywraca pełną kontrolę nad jazdą, podnoszeniem, przechyłem i hydrauliką w maszynach z układem Selectable Joystick Control (SJC) lub All-Wheel Steer (AWS) . Zawiera ...
Oferujemy profesjonalną diagnostykę komputerową Bobcat na terenie całej Polski. Specjalizujemy się w obsłudze miniładowarek, koparek, ładowarek teleskopowych i kompaktowych oraz pełnej gamy maszyn budowlanych tej marki. W pracy wykorzystujemy ...
html Felga Bobcat 10x16,5 - 7232567 Oryginalna felga Bobcat 10x16,5 o numerze katalogowym 7232567 to doskonały wybór dla maszyn budowlanych Bobcat. Wykonana z wysokiej jakości materiałów, zapewnia trwałość i niezawodność w trudnych warunkach pracy. ...
Filtr hydrauliczny 6661248 hydraulic filter ...
PERKINS – komplet uszczelek góry silnika AJ, AK, AL, AM, AP, AQ (1004.4) Opis produktu: Zestaw oryginalnych uszczelek góry silnika Perkins 1004.4 serii AJ, AK, AL, AM, AP, AQ . W komplecie znajduje się m.in. uszczelka pod głowicę 3681E037 . Komplet ...
Hydromotor jazdy 2-biegowy Bobcat – 7388751 Opis produktu: Oryginalny hydromotor jazdy Bobcat #7388751 przeznaczony do gąsienicowych miniładowarek. Silnik odpowiada za napędzanie koła zębatego układu jezdnego, zapewniając wysoką moc i niezawodność w ...
Koło napędowe gąsienicy Bobcat – 6813372 Koło napędowe Bobcat #6813372 stosowane w koparkach kompaktowych. Odpowiada za prawidłowe przenoszenie napędu na gąsienice, zapewniając płynność jazdy i wysoką trwałość podwozia. Element wykonany z wysokiej ...
