Bobcat Machine Diagnostic Service & Fault Codes - #W-codes (p2)
art. W-FaultCodes-2

filtr
Bobcat Machine Diagnostic Service & Fault Codes - #W-codes (p2)

Kody diagnostyczne i serwisowe Bobcat - lista błędów i rozwiązań

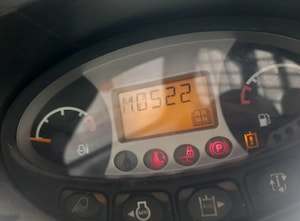

Diagnostyka Bobcat - odczyt i interpretacja kodów usterek
Maszyny Bobcat wyposażone są w system elektroniczny, który monitoruje parametry pracy i zgłasza wszelkie nieprawidłowości w formie kodów błędów. Dzięki temu operator może szybko zidentyfikować problem i podjąć odpowiednie działania, aby uniknąć awarii lub dłuższego przestoju.

⚠️ Uwaga: Zanim przystąpisz do naprawy lub serwisu, zawsze skonsultuj się z Instrukcją Obsługi i Konserwacji swojej maszyny Bobcat.

Obsługiwane maszyny - zakres kodów diagnostycznych Bobcat:

Ładowarki serii M: od S450 do S850, od T450 do T870
Ładowarki serii R: od S60 do S70, od T60 do T70
Minikoparki serii M: od E26 do E85
Koparki E145 i E165
Ładowarki przegubowe kompaktowe (SAL)
Maszyny wielofunkcyjne Toolcat
Ładowarki kołowe kompaktowe
Ładowarki teleskopowe Bobcat
Osprzęt Bobcat
Diagnostyka silników Bobcat:
Silniki Bobcat V1 (ECU DELPHI)
Silniki Bobcat V2 (ECU BOSCH)
Silniki Bobcat D34 (DCU)

Specjalizujemy się w diagnostyce Bobcat, naprawach i optymalizacji pracy maszyn. Pomagamy zarówno w szybkim rozwiązywaniu problemów z kodami błędów, jak i w zapobieganiu przyszłym usterkom.

Bobcat Diagnostic Service Codes provide operators with a clear way to identify and troubleshoot machine issues. Covering loaders, excavators, telehandlers, and engines (Delphi, Bosch, DCU), these codes improve efficiency and minimize downtime. If you need help interpreting a fault code, our team can assist with diagnostics, repair, and machine optimization.

CodeProductDescription
W3264M-Series LoaderACS Pedal lock short to battery
W3265M-Series LoaderACS Sensor supply voltage out of range
W3266M-Series LoaderACS Battery voltage out of range
W3267M-Series LoaderACS Switch flipped while operating
W3268M-Series LoaderACS Lift handle information error
W3270M-Series LoaderACS Right hand drive short to ground
W3271M-Series LoaderACS Right hand drive short to battery
W3274M-Series LoaderACS Left Joystick X-Axis Out of Range
W3275M-Series LoaderACS Interrupted unswitched power
W3276M-Series LoaderACS CAN Joystick Information Error
W3277M-Series LoaderACS Remote Control Information Error
W3295M-Series LoaderWorkgroup Calibration Passed
W3296TelehandlerInterrupted power
W3296M-Series LoaderWorkgroup Calibration Failed
W3297M-Series LoaderACS (AHC) Controller Programmed
W3297TelehandlerController programmed
W3298M-Series LoaderWorkgroup In Calibration Mode
W3299M-Series LoaderWorkgroup Calibration Required
W3304M-Series LoaderMain Controller No Communication
W3304TelehandlerGateway controller No communication
W3404TelehandlerDisplay controller No communication
W3604TelehandlerEngine controller No communication
W3704TelehandlerDrive controller No communication
W3804TelehandlerLLMC No communication
W3818TelehandlerLLMC Out of Range
W3844TelehandlerLLMC Not matching
W3845TelehandlerLLMC Not matching level 2
W3904TelehandlerLLMI No communication
W3904M-Series LoaderLeft Joystick No Communication
W3905M-Series LoaderLeft Joystick X-Axis Not in Neutral
W3918TelehandlerLLMI Out of Range
W4004TelehandlerJoystick No communication
W4004M-Series LoaderRight Joystick No Communication
CodeProductDescription
W4005M-Series LoaderRight Joystick X-Axis Not in Neutral
W4005TelehandlerJoystick X Axis Out Of Neutral (Tilt)
W4007TelehandlerJoystick Y Axis Out Of Neutral (Lift)
W4007M-Series LoaderRight Joystick Y-Axis Not in Neutral
W4010TelehandlerJoystick Left roller Out Of Neutral (Extend Retract)
W4028TelehandlerJoystick Grip Fault
W4204TelehandlerReceiver No Communication
W4205TelehandlerRemote Left Joystick X Axis OON
W4206TelehandlerRemote Right Joystick X Axis OON
W4207TelehandlerRemote Left Joystick Y Axis OON
W4208TelehandlerRemote Right Joystick Y Axis OON
W4215TelehandlerRemote Left Joystick X axis in error
W4216TelehandlerRemote Right Joystick X axis in error
W4217TelehandlerRemote Left Joystick Y axis in error
W4218TelehandlerRemote Right Joystick Y axis in error
W4320TelehandlerManbasket mode : Remote control not connected to Manbasket harness(from
Receiver CAN Bus signal)
W4321TelehandlerManbasket mode : Remote control not connected to Manbasket harness (from GACD
controller status)
W4325TelehandlerManbasket mode : Manbasket detection in error
W4326TelehandlerManbasket mode : Manbasket not detected on carriage
W4327TelehandlerManbasket mode : Manbasket not detected on carriage with GACD on or Remote
control active
W4330TelehandlerManbasket mode : Manbasket Retract switch in error
W4331TelehandlerManbasket mode : No boom extension when expected (boom retract switch ON)
W4335TelehandlerManbasket mode : Stabilizers in error
W4336TelehandlerManbasket mode : Stabilizers not on the ground
W4340TelehandlerManbasket mode : Boom angle in error
W4341TelehandlerManbasket mode : Boom lift movement when not expected
W4342TelehandlerManbasket mode : No Boom lift movement when expected
W4343TelehandlerManbasket mode : Boom angle limit exceeded
W4345TelehandlerManbasket mode : LLM in error
W4346TelehandlerManbasket mode : LLM in reduced zone
W4347TelehandlerManbasket mode : Longitudinal stability: Max allowed value reached.
W4350TelehandlerManbasket mode : Frame Leveling in error
W4351TelehandlerManbasket mode : Frame Leveling angle exeeded (out of the range [-2°;+2°])
W4355TelehandlerManbasket mode : Interlocking pin in error
W4356TelehandlerManbasket mode : Interlocking pin unlocked
W4360TelehandlerManbasket mode : Manbasket Overload in error
W4361TelehandlerManbasket mode : Manbasket Overload
W4362TelehandlerManbasket mode : Manbasket Overload in error Level 2
W4365TelehandlerManbasket mode : Tilt angle in error
W4366TelehandlerManbasket mode : Tilt angle limit exceeded (out of the range [-4° ;+4° ])
W4370TelehandlerManbasket mode : FNR in error
W4371TelehandlerManbasket mode : Park brake in error
W4372TelehandlerManbasket mode : Swash plate position in error
W4404TelehandlerManbasket mode : GACD controller no communication on CAN Bus
W4621TelehandlerVsensor 5V supply OOR High
W4622TelehandlerVsensor 5V supply OOR Low
W4721M-Series LoaderSensor Supply Out of Range High
W4722M-Series LoaderSensor Supply Out of Range Low
CodeProductDescription
W4902TelehandlerBlue lights Output Short To Battery or Open Circuit
W4903TelehandlerBlue lights Output Short To Ground
W5004M-Series LoaderLift Float Failed to maintain float
W5005TelehandlerRear diverter 1 output Short To Battery
W5006TelehandlerRear diverter 1 output Short To Ground
W5007TelehandlerRear diverter 1 output Open Circuit
W5102TelehandlerRear diverter 2 output Error On
W5103TelehandlerRear diverter 2 output Error Off
W5107TelehandlerRear diverter 2 output Open Circuit
W5202TelehandlerRear diverter 2 output Relay Feedback Error On
W5203TelehandlerRear diverter 2 output Relay Feedback Error Off
W5302TelehandlerFront / Rear diverter sensor Error On
W5303TelehandlerFront / Rear diverter sensor Error Off
W5402TelehandlerBoom Worklights Output Short To Battery or Open Circuit
W5403TelehandlerBoom Worklights Output Short To Ground
W5502TelehandlerMirror Worklights Output Short To Battery or Open Circuit
W5503TelehandlerMirror Worklights Output Short To Ground
W5602TelehandlerMirror Defrost Output Short To Battery or Open Circuit
W5603TelehandlerMirror Defrost Output Short To Ground
W6021TelehandlerInclinometer sensor input Out of Range High
W6022TelehandlerInclinometer sensor input Out of Range Low
W6098TelehandlerCalibration performed
W6099TelehandlerInclinometer Calibration required
W6102TelehandlerInclinometer lamp error on
W6103TelehandlerInclinometer lamp error off
W6521TelehandlerBoom Angle 1 OOR High
W6522TelehandlerBoom Angle 1 OOR Low
W6621TelehandlerBoom Angle 2 OOR High
W6622TelehandlerBoom Angle 2 OOR Low
W6744TelehandlerBoom Angle in error
W6798TelehandlerBoom Angle Calibration Performed
W6799TelehandlerBoom Angle Calibration Required
W6802TelehandlerBoom retract Switch Short to Battery
W6803TelehandlerBoom retract Switch Short to Ground or open circuit
W6902TelehandlerBoom retract Switch 2 Short to Battery
W6903TelehandlerBoom retract Switch 2 Short to Ground or open circuit
W6928TelehandlerBoom retract Switch 2 In Error
W7002TelehandlerBoom Drain Output Error ON
W7003TelehandlerBoom Drain Output Error OFF
W7007TelehandlerBoom Drain Output Error Open Circuit
W7033TelehandlerBoom Drain Output Internal Failure
W7102TelehandlerBoom Drain Relay Feedback Output Error ON
W7103TelehandlerBoom Drain Relay Feedback Output Error OFF
W7304M-Series LoaderRemote Control No Communication
W7428TelehandlerBoom Suspension Error
W7504M-Series LoaderDrive Controller No Communication
W7528TelehandlerBoom Suspension/Float switch On
W7602TelehandlerBoom Suspension Icon Error ON
