Kody diagnostyczne i serwisowe Bobcat - lista błędów i rozwiązań

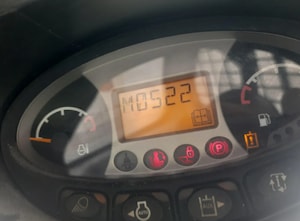

Diagnostyka Bobcat - odczyt i interpretacja kodów usterek
Maszyny Bobcat wyposażone są w system elektroniczny, który monitoruje parametry pracy i zgłasza wszelkie nieprawidłowości w formie kodów błędów. Dzięki temu operator może szybko zidentyfikować problem i podjąć odpowiednie działania, aby uniknąć awarii lub dłuższego przestoju.
⚠️ Uwaga: Zanim przystąpisz do naprawy lub serwisu, zawsze skonsultuj się z Instrukcją Obsługi i Konserwacji swojej maszyny Bobcat.
Obsługiwane maszyny - zakres kodów diagnostycznych Bobcat:
Ładowarki serii M: od S450 do S850, od T450 do T870
Ładowarki serii R: od S60 do S70, od T60 do T70
Minikoparki serii M: od E26 do E85
Koparki E145 i E165
Ładowarki przegubowe kompaktowe (SAL)
Maszyny wielofunkcyjne Toolcat
Ładowarki kołowe kompaktowe
Ładowarki teleskopowe Bobcat
Osprzęt Bobcat
Diagnostyka silników Bobcat:
Silniki Bobcat V1 (ECU DELPHI)
Silniki Bobcat V2 (ECU BOSCH)
Silniki Bobcat D34 (DCU)
Specjalizujemy się w diagnostyce Bobcat, naprawach i optymalizacji pracy maszyn. Pomagamy zarówno w szybkim rozwiązywaniu problemów z kodami błędów, jak i w zapobieganiu przyszłym usterkom.
Bobcat Diagnostic Service Codes provide operators with a clear way to identify and troubleshoot machine issues. Covering loaders, excavators, telehandlers, and engines (Delphi, Bosch, DCU), these codes improve efficiency and minimize downtime. If you need help interpreting a fault code, our team can assist with diagnostics, repair, and machine optimization.
| Code | Product | Description | ||||||
| C1071-11 | M-Series Loader | Rear Auxiliary Base Lock Solenoid Short to Ground | ||||||
| C1071-12 | M-Series Loader | Rear Auxiliary Base Lock Solenoid Short to Battery | ||||||
| C1071-13 | M-Series Loader | Rear Auxiliary Base Lock Open Circuit | ||||||
| C1075-11 | M-Series Loader | Rear Auxiliary Rod Solenoid Short to Ground | ||||||
| C1075-12 | M-Series Loader | Rear Auxiliary Rod Solenoid Short to Battery | ||||||
| C1075-13 | M-Series Loader | Rear Auxiliary Rod Solenoid Open Circuit | ||||||
| C1076-11 | M-Series Loader | Rear Auxiliary Rod Lock Solenoid Short to Ground | ||||||
| C1076-12 | M-Series Loader | Rear Auxiliary Rod Lock Solenoid Short to Battery | ||||||
| C1076-13 | M-Series Loader | Rear Auxiliary Rod Solenoid Open Circuit | ||||||
| C1080-F8 | M-Series Loader | Hydraulic Charge Pressure Extremely Low | ||||||
| C1080-F9 | M-Series Loader | Low Hydraulic Pump Pressure | ||||||
| C1080-FA | M-Series Loader | Hydraulic Charge Pressure High | ||||||
| C1080-FB | M-Series Loader | Hydraulic Charge Pressure Extremely High | ||||||
| C1080-FD | Small Articulated Loader | Hydraulic Charge Pressure Shutdown | ||||||
| C1090-00 | Toolcat | Hydraulic Main Filter Plugged | ||||||
| C1090-00 | Compact Wheel Loader | Hydraulic Filter Plugged | ||||||
| C1091-16 | Toolcat | Hydraulic Main Filter Switch - Circuit Voltage Below Threshold | ||||||
| C1091-17 | Toolcat | Hydraulic Main Filter Switch - Circuit Voltage Above Threshold | ||||||
| C1091-95 | Toolcat | Hydraulic Main Filter Pressure Switch - Incorrect Assembly | ||||||
| C1091-95 | Compact Wheel Loader | Hydraulic Main Filter Switch Not Connected | ||||||
| C1093-00 | M-Series Loader | Hydraulic Case Drain Filter Switch Plugged | ||||||
| C1097-16 | M-Series Loader | Hydraulic Charge Pressure Sensor Out of Range Low | ||||||
| C1097-17 | M-Series Loader | Hydraulic Charge Pressure Sensor Out of Range High | ||||||
| C1099-FA | Toolcat | Hydraulic Oil Temperature - High | ||||||
| Code | Product | Description | ||||||
| C1099-FA | Compact Wheel Loader | Hydraulic Oil Temperature Too High | ||||||
| C1099-FB | Compact Wheel Loader | Hydraulic Oil Temperature Extremely High | ||||||
| C1099-FB | Toolcat | Hydraulic Oil Temperature - Extremely High | ||||||
| C1099-FC | Compact Wheel Loader | Hydraulic Oil Temperature Performance Reduction | ||||||
| C1099-FD | Small Articulated Loader | Hydraulic Oil Temperature Shutdown | ||||||
| C109A-16 | Toolcat | Hydraulic Oil Temperature Sensor - Circuit Voltage Below Threshold | ||||||
| C109A-16 | Compact Wheel Loader | Hydraulic Oil Temperature Out of Range Low | ||||||
| C109A-17 | Compact Wheel Loader | Hydraulic Oil Temperature Out of Range High | ||||||
| C109A-17 | Toolcat | Hydraulic Oil Temperature Sensor - Circuit Voltage Above Threshold | ||||||
| C10A0-16 | M-Series Loader | Drive Motor Case Drain Hydraulic Oil Temperature Out of Range Low | ||||||
| C10A0-17 | M-Series Loader | Drive Motor Case Drain Hydraulic Oil Temperature Out of Range High | ||||||
| C10A1-FA | M-Series Loader | Drive Motor Case Drain Hydraulic Oil Temperature High | ||||||
| C10A1-FB | M-Series Loader | Drive Motor Case Drain Hydraulic Oil Temperature Extremely High | ||||||
| C10A1-FC | M-Series Loader | Drive Motor Case Drain Hydraulic Oil Temperature Reduced Performance | ||||||
| C10A5-16 | M-Series Loader | Pump Case Drain Hydraulic Oil Temperature Out of Range Low | ||||||
| C10A5-17 | M-Series Loader | Pump Case Drain Hydraulic Oil Temperature Out of Range High | ||||||
| C10A6-FA | M-Series Loader | Pump Case Drain Hydraulic Oil Temperature High | ||||||
| C10A6-FB | M-Series Loader | Pump Case Drain Hydraulic Oil Temperature Extremely High | ||||||
| C10A6-FC | M-Series Loader | Pump Case Drain Hydraulic Oil Temperature High | ||||||
| C10B0-00 | M-Series Loader | Workgroup Disabled Due To Window Fault | ||||||
| C10C0-77 | M-Series Loader | Right Swash Plate Commanded Position Not Reachable | ||||||
| C10C0-F0 | M-Series Loader | Right Swash Plate Not in Neutral | ||||||
| C10C1-16 | M-Series Loader | Right Swash Plate Sensor Out of Range Low | ||||||
| C10C1-17 | M-Series Loader | Right Swash Plate Sensor Out of Range High | ||||||
| C10C5-77 | M-Series Loader | Left Swash Plate Commanded Position Not Reachable | ||||||
| C10C5-F0 | M-Series Loader | Left Swash Plate Not in Neutral | ||||||
| C10C6-16 | M-Series Loader | Left Swash Plate Sensor Out of Range Low | ||||||
| C10C6-17 | M-Series Loader | Left Swash Plate Sensor Out of Range High | ||||||
| C10CA-77 | Toolcat | Swash Plate - Commanded Position Not Reachable | ||||||
| C10CA-F0 | Toolcat | Swash Plate - Not in Neutral | ||||||
| C10CB-16 | Toolcat | Swash Plate Sensor - Circuit Voltage Below Threshold | ||||||
| C10CB-17 | Toolcat | Swash Plate Sensor - Circuit Voltage Above Threshold | ||||||
| C10D0-54 | M-Series Loader | Drive Pump Not Calibrated | ||||||
| C10D0-54 | Toolcat | Drive Pump - Missing Calibration | ||||||
| C10D1-11 | Toolcat | Drive Pump Forward - Circuit Short to Ground | ||||||
| C10D1-11 | Compact Wheel Loader | Drive Pump Forward Short to Ground | ||||||
| C10D1-12 | Toolcat | Drive Pump Forward - Circuit Short to Battery | ||||||
| C10D1-12 | Compact Wheel Loader | Drive Pump Forward Short to Battery | ||||||
| C10D1-13 | Compact Wheel Loader | Drive Pump Forward Open Circuit | ||||||
| C10D1-13 | Toolcat | Drive Pump Forward - Circuit Open | ||||||
| C10D1-19 | Compact Wheel Loader | Drive Pump Forward Overcurrent | ||||||
| C10D1-19 | Toolcat | Drive Pump Forward - Circuit Current Above Threshold | ||||||
| C10D2-11 | Compact Wheel Loader | Drive Pump reverse Short to Ground | ||||||
| C10D2-11 | Toolcat | Drive Pump Reverse - Circuit Short to Ground | ||||||
| C10D2-12 | Toolcat | Drive Pump Reverse - Circuit Short to Battery | ||||||
| C10D2-12 | Compact Wheel Loader | Drive Pump reverse Short to Battery | ||||||
| C10D2-13 | Compact Wheel Loader | Drive Pump reverse Open Circuit | ||||||
| C10D2-13 | Toolcat | Drive Pump Reverse - Circuit Open | ||||||
| C10D2-19 | Compact Wheel Loader | Drive Pump reverse Overcurrent | ||||||
| C10D2-19 | Toolcat | Drive Pump Reverse - Circuit Current Above Threshold | ||||||
| C10E0-16 | Small Articulated Loader | Controller 8V Sensor Supply Voltage Low | ||||||
| C10E0-17 | Small Articulated Loader | Controller 8V Sensor Supply Voltage High | ||||||
| Code | Product | Description | ||||||
| C10E5-16 | Small Articulated Loader | Controller 5V Sensor Supply Voltage Low | ||||||
| C10E5-17 | Small Articulated Loader | Controller 5V Sensor Supply Voltage High | ||||||
| C10F0-11 | Small Articulated Loader | Lift/Tilt Short to Ground | ||||||
| C10F0-12 | Small Articulated Loader | Lift/Tilt Short to Battery | ||||||
| C10F0-13 | Small Articulated Loader | Lift/Tilt Open Circuit | ||||||
| C10F1-16 | Small Articulated Loader | Lift/Tilt Out of Range Low | ||||||
| C10F1-17 | Small Articulated Loader | Lift/Tilt Out of Range High | ||||||
| C10FA-11 | Small Articulated Loader | Lift Arm Extension Short to Ground | ||||||
| C10FA-12 | Small Articulated Loader | Lift Arm Extension Short to Battery | ||||||
| C10FA-13 | Small Articulated Loader | Lift Arm Extension Open Circuit | ||||||
| C10FA-19 | Small Articulated Loader | Lift Arm Extension Overcurrent | ||||||
| C10FB-11 | Small Articulated Loader | Lift Arm Rod Solenoid Short to Ground | ||||||
| C10FB-12 | Small Articulated Loader | Lift Arm Rod Solenoid Short to Battery | ||||||
| C10FB-13 | Small Articulated Loader | Lift Arm Rod Solenoid Open Circuit | ||||||
| C10FB-19 | Small Articulated Loader | Lift Arm Rod Solenoid Overcurrent | ||||||
| C10FC-11 | Small Articulated Loader | Lift Arm Base Solenoid Short to Ground | ||||||
| C10FC-12 | Small Articulated Loader | Lift Arm Base Solenoid Short to Battery | ||||||
| C10FC-13 | Small Articulated Loader | Lift Arm Solenoid Open Circuit | ||||||
| C10FC-19 | Small Articulated Loader | Lift Arm Solenoid Overcurrent | ||||||
| C1100-11 | Small Articulated Loader | Travel Circuit Short to Ground | ||||||
| C1100-12 | Small Articulated Loader | Travel Circuit Short to Battery | ||||||
| C1100-13 | Small Articulated Loader | Travel Circuit Open | ||||||
| C1101-16 | Small Articulated Loader | Travel Circuit Our of Range Low | ||||||
| C1101-17 | Small Articulated Loader | Travel Circuit Out of Range High | ||||||
| C1110-11 | Compact Wheel Loader | Ride Control Circuit Short to Ground | ||||||
| C1110-15 | Compact Wheel Loader | Ride Control Circuit Error On | ||||||
| C1111-16 | Compact Wheel Loader | Ride Control Feedback Circuit Out of Range Low | ||||||
| C1111-17 | Compact Wheel Loader | Ride Control Feedback Circuit Out of Range High | ||||||
| C1130-11 | Compact Wheel Loader | Hydraulic Motor reverse Short to Ground | ||||||
| C1130-12 | Compact Wheel Loader | Hydraulic Motor reverse Short to Battery | ||||||
| C1130-13 | Compact Wheel Loader | Hydraulic Motor reverse Open Circuit | ||||||
| C1130-19 | Compact Wheel Loader | Hydraulic Motor Overcurrent | ||||||
| C1150-13 | M-Series Loader | Right Drive Motor Direction Open Circuit | ||||||
| C1150-16 | M-Series Loader | Right Drive Motor Direction Out of Range Low | ||||||
| C1150-17 | M-Series Loader | Right Drive Motor Direction Out of Range High | ||||||
| C1155-13 | M-Series Loader | Left Drive Motor Direction Open Circuit | ||||||
| C1155-16 | M-Series Loader | Left Drive Motor Direction Out of Range Low | ||||||
| C1155-17 | M-Series Loader | Left Drive Motor Direction Out of Range High | ||||||
| C1182-A2 | Small Articulated Loader | Alternator Voltage High | ||||||
| C1182-A2 | Compact Wheel Loader | Alternator Voltage Low | ||||||
| C1182-A2 | Toolcat | Alternator Voltage System Voltage Low | ||||||
| C1182-A3 | Toolcat | Alternator Voltage System Voltage High | ||||||
| C1182-A3 | Small Articulated Loader | Alternator Voltage Low | ||||||
| C1182-A3 | M-Series Loader | Alternator Voltage High | ||||||
| C1183-A3 | Compact Wheel Loader | Alternator Voltage High | ||||||
| C1190-00 | M-Series Loader | System Voltage Out of Range Low | ||||||
| C1192-00 | Compact Wheel Loader | System Voltage Extremely Low | ||||||
| C1192-00 | Toolcat | Battery Voltage Extremely Low | ||||||
| C1193-00 | Toolcat | Battery Voltage Low | ||||||
| C1193-00 | Compact Wheel Loader | System Voltage Too Low | ||||||
| C1195-00 | M-Series Loader | System Voltage Extremely Low | ||||||
| C1195-00 | Toolcat | Battery Voltage High | ||||||
| Code | Product | Description | ||||||
| C1195-00 | Compact Wheel Loader | System Voltage High | ||||||
| C1196-00 | Compact Wheel Loader | System Voltage Extremely High | ||||||
| C1196-00 | Toolcat | Battery Voltage Extremely High | ||||||
| C119A-F8 | Small Articulated Loader | System Voltage Extremely Low | ||||||
| C119A-F9 | Small Articulated Loader | System Voltage Too Low | ||||||
| C119A-FA | Small Articulated Loader | System Voltage Extremely Low | ||||||
| C119A-FB | Small Articulated Loader | System Voltage Extremely High | ||||||
| C11A0-11 | Toolcat | Servo Enable Solenoid - Circuit Short to Ground | ||||||
| C11A0-12 | Toolcat | Servo Enable Solenoid - Circuit Short to Battery | ||||||
| C11A0-13 | Toolcat | Servo Enable Solenoid - Circuit Open | ||||||
| C11C0-11 | M-Series Loader | Left Forward Drive Solenoid Error Off | ||||||
| C11C0-12 | M-Series Loader | Left Forward Drive Solenoid Error On | ||||||
| C11C2-11 | M-Series Loader | Left Reverse Drive Solenoid Error Off | ||||||
| C11C2-12 | M-Series Loader | Left Reverse Drive Solenoid Error On | ||||||
| C11C4-11 | M-Series Loader | Right Forward Drive Solenoid Error Off | ||||||
| C11C4-12 | M-Series Loader | Right Forward Drive Solenoid Error On | ||||||
| C11C6-11 | M-Series Loader | Right Reverse Drive Solenoid Error Off | ||||||
| C11C6-12 | M-Series Loader | Right Reverse Drive Solenoid Error On | ||||||
| C11F0-94 | Toolcat | Diverter Switch - Unexpected Operation | ||||||
| C1200-11 | Compact Wheel Loader | Power Exchange Unlock Short to Ground | ||||||
| C1200-12 | Compact Wheel Loader | Power Exchange Unlock Short to Battery | ||||||
| C1200-13 | Compact Wheel Loader | Power Exchange Unlock Open Circuit | ||||||
| C1205-11 | Compact Wheel Loader | Power Exchange Lock Short to Ground | ||||||
| C1205-12 | Compact Wheel Loader | Power Exchange Lock Short to Battery | ||||||
| C1205-13 | Compact Wheel Loader | Power Exchange Lock Open Circuit | ||||||
| C1220-11 | Compact Wheel Loader | Diff-LockShort to Ground | ||||||
| C1220-12 | Compact Wheel Loader | Diff-LockShort to Battery | ||||||
| C1220-13 | Compact Wheel Loader | Diff-LockOpen Circuit | ||||||
| C1220-19 | Compact Wheel Loader | Diff-Lock Overcurrent | ||||||
| C1221-17 | Compact Wheel Loader | Diff-Lock Sensor Out of Range High | ||||||
| C1250-F9 | Compact Wheel Loader | Park Brake Pressure Low | ||||||
| C1250-FA | Compact Wheel Loader | Park Brake Pressure High | ||||||
| C1251-16 | Compact Wheel Loader | Park Brake Pressure Sensor Circuit Out of Range Low | ||||||
| C1251-17 | Compact Wheel Loader | Park Brake Pressure Sensor Circuit Out of Range High | ||||||
| C1260-F9 | Compact Wheel Loader | Service Brake Pressure Low | ||||||
| C1260-FA | Compact Wheel Loader | Service Brake Pressure High | ||||||
| C1260-FB | Compact Wheel Loader | Service Brake Pressure Extremely High | ||||||
| C1261-16 | Compact Wheel Loader | Service Brake Pressure Sensor Circuit Out of Range Low | ||||||
| C1261-17 | Compact Wheel Loader | Service Brake Pressure Sensor Circuit Out of Range High | ||||||
| C1270-F9 | Compact Wheel Loader | Steering PressureLow | ||||||
| C1271-16 | Compact Wheel Loader | Steering Pressure Sensor Circuit Out of Range Low | ||||||
| C1271-17 | Compact Wheel Loader | Steering Pressure Sensor Circuit Out of Range High | ||||||
Producent
Bobcat
Bobcat
TL25.60, V519, V623, V638, V723, V918, V923, VR518, V530C, VR638, VR723, TL30.60, TL30.70, TL34.65HF, TL38.70, TL38.70HF, TL43.80, V417, A-series, A220, A300, A770, B-series, BL-series, CT-series, DX10z, DX19, DZ17z, E-series, E08, E10, E10e, E14, E145, E16, E165, E17, E17z, E18z, E19, E19e, E20, E27, E27z, E30, E32, E32i, E34, E35, E35i, E35z, E37, E38, E40, E42, E45, E48, E50, E50z, E55, E55w, E55z, E60, E62, E63, E80, E85, E88, R-series, S-series, S100, s130, S150, S16, S175, S185, S205, S220, S250, S300, S330, S450, S510, S530, S550, S570, S590, S595, S630, S650, S740, S750, S770, S850, T-series, T110, T140, T180, T190, T200, T2250, T250, T2556, T300, T320, T35.105, T35.105L, T35.130S, T35.130SLP, T35.140S, T35100, T35105, T35130, T35140, T3571, T36120, T40140, T40170, T40180, T41.140, T450, T550, T590, T595, T630, T650, T740, T750, T770, T870, TD-series, TL-series, TL26.60, TL34.65, TL35.70, TL358, TL360, TL470, TL519, V-series, V518, VR-series, VR530, X-series, X100, X116, X130, X220, X225, X231, X316, X319, X320, X321, X322, X323, X324, X325, X328, X331, X334, X335, X337, X341, X418, X425, X428, X430, X435, X442, X444, ZX125, ZX75, 553, 641, 642, 643, 645, 653, 741, 742, 743, 751, 753, 763, 773, 843, 853, 863, 864, 873, 883, 963, 2200, 2400, 2410
Jeśli chcesz kupić bobcat Machine Diagnostic Service & Fault Codes - #C-codes (p2) , możesz:
Połączenie:
Więcej z sekcji części do Bobcat
Kody diagnostyczne Bobcat - lista błędów i rozwiązywanie problemów Kody diagnostyczne Bobcat to narzędzie, które pozwala operatorom szybko rozpoznać i zareagować na potencjalne usterki maszyn. System generuje kody błędów w momencie, gdy parametry ...
