Kody diagnostyczne i serwisowe Bobcat - lista błędów i rozwiązań

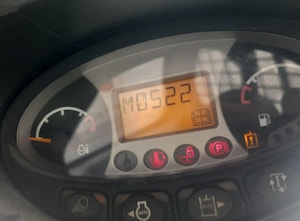

Diagnostyka Bobcat - odczyt i interpretacja kodów usterek
Maszyny Bobcat wyposażone są w system elektroniczny, który monitoruje parametry pracy i zgłasza wszelkie nieprawidłowości w formie kodów błędów. Dzięki temu operator może szybko zidentyfikować problem i podjąć odpowiednie działania, aby uniknąć awarii lub dłuższego przestoju.
⚠️ Uwaga: Zanim przystąpisz do naprawy lub serwisu, zawsze skonsultuj się z Instrukcją Obsługi i Konserwacji swojej maszyny Bobcat.
Obsługiwane maszyny - zakres kodów diagnostycznych Bobcat:
Ładowarki serii M: od S450 do S850, od T450 do T870
Ładowarki serii R: od S60 do S70, od T60 do T70
Minikoparki serii M: od E26 do E85
Koparki E145 i E165
Ładowarki przegubowe kompaktowe (SAL)
Maszyny wielofunkcyjne Toolcat
Ładowarki kołowe kompaktowe
Ładowarki teleskopowe Bobcat
Osprzęt Bobcat
Diagnostyka silników Bobcat:
Silniki Bobcat V1 (ECU DELPHI)
Silniki Bobcat V2 (ECU BOSCH)
Silniki Bobcat D34 (DCU)
Specjalizujemy się w diagnostyce Bobcat, naprawach i optymalizacji pracy maszyn. Pomagamy zarówno w szybkim rozwiązywaniu problemów z kodami błędów, jak i w zapobieganiu przyszłym usterkom.
Bobcat Diagnostic Service Codes provide operators with a clear way to identify and troubleshoot machine issues. Covering loaders, excavators, telehandlers, and engines (Delphi, Bosch, DCU), these codes improve efficiency and minimize downtime. If you need help interpreting a fault code, our team can assist with diagnostics, repair, and machine optimization.
| Code | Product | Description | ||||||
| C0314 | Telehandler | LLMC Undervoltage | ||||||
| C0315 | Telehandler | LLMC Overvoltage | ||||||
| C1001-16 | Toolcat | Hub Controller Sensor Supply - Circuit Voltage Below Threshold | ||||||
| C1001-16 | Compact Wheel Loader | Sensor Supply Out of Range Low | ||||||
| C1001-17 | Toolcat | Hub Controller Sensor Supply - Circuit Voltage Above Threshold | ||||||
| C1001-17 | Compact Wheel Loader | Sensor Supply Out of Range High | ||||||
| C1002-16 | M-Series Loader | Sensor Supply Out of Range Low | ||||||
| C1002-17 | M-Series Loader | Sensor Supply Out of Range High | ||||||
| C1003-16 | Compact Wheel Loader | Sensor Supply Out of Range Low | ||||||
| C1003-17 | Compact Wheel Loader | Sensor Supply Out of Range High | ||||||
| C1004-16 | Compact Wheel Loader | Drive Controller Sensor Supply Out of Range Low | ||||||
| C1004-17 | Compact Wheel Loader | Drive Controller Sensor Supply Out of Range High | ||||||
| C1005-16 | Toolcat | Pump Controller Sensor Supply - Circuit Voltage Below Threshold | ||||||
| C1005-17 | Toolcat | Pump Controller Sensor Supply - Circuit Voltage Above Threshold | ||||||
| C1006-16 | Toolcat | Rear Controller Sensor Supply - Circuit Voltage Below Threshold | ||||||
| C1006-17 | Toolcat | Rear Controller Sensor Supply - Circuit Voltage Above Threshold | ||||||
| C100A-11 | M-Series Loader | ECU Power Short to Ground | ||||||
| C100A-11 | Toolcat | ECU Power - Circuit Short to Ground | ||||||
| C100A-12 | Toolcat | ECU Power - Circuit Short to Battery | ||||||
| C100A-12 | M-Series Loader | ECU Power Short to Battery | ||||||
| C100A-13 | M-Series Loader | ECU Power Open Circuit | ||||||
| C100A-13 | Toolcat | ECU Power - Circuit Open | ||||||
| C1015-16 | M-Series Loader | Lift Spool Position Sensor Out of Range Low | ||||||
| C1015-17 | M-Series Loader | Lift Spool Position Sensor Out of Range High | ||||||
| C1015-56 | M-Series Loader | Lift Spool Position Sensor Inverted Movement | ||||||
| C1015-93 | M-Series Loader | Lift Spool Position Sensor Unresponsive | ||||||
| C1015-F0 | M-Series Loader | Lift Spool Position Sensor Not in Neutral | ||||||
| C1016-16 | M-Series Loader | Tilt Spool Position Sensor Out of Range Low | ||||||
| C1016-17 | M-Series Loader | Tilt Spool Position Sensor Out of Range High | ||||||
| C1016-93 | M-Series Loader | Tilt Spool Position Sensor Unresponsive | ||||||
| C1016-F0 | M-Series Loader | Tilt Spool Position Sensor Not in Neutral | ||||||
| C101A-16 | Compact Wheel Loader | Lift Base Pressure Out of Range Low | ||||||
| C101A-17 | Compact Wheel Loader | Lift Base Pressure Out of Range High | ||||||
| C101D-16 | M-Series Loader | Tilt Rod Pressure Sensor Out of Range Low | ||||||
| C101D-17 | M-Series Loader | Tilt Rod Pressure Sensor Out of Range High | ||||||
| C1020-11 | Compact Wheel Loader | Front Base Solenoid Short to Ground | ||||||
| C1020-11 | Toolcat | Front Aux Base Solenoid - Circuit Short to Ground | ||||||
| C1020-12 | Compact Wheel Loader | Front Base Solenoid Short to Battery | ||||||
| C1020-12 | Toolcat | Front Aux Base Solenoid - Circuit Short to Battery | ||||||
| C1020-13 | Compact Wheel Loader | Front Base Solenoid Open Circuit | ||||||
| C1020-13 | Toolcat | Front Aux Base Solenoid - Circuit Open | ||||||
| C1020-19 | Compact Wheel Loader | Front Base Solenoid Overcurrent | ||||||
| C1020-19 | Toolcat | Front Aux Base Solenoid - Circuit Current Above Threshold | ||||||
| C1021-11 | Toolcat | Front Aux Rod Solenoid - Circuit Short to Ground | ||||||
| Code | Product | Description | ||||||
| C1021-11 | Compact Wheel Loader | Front Rod Solenoid Short to Ground | ||||||
| C1021-12 | Toolcat | Front Aux Rod Solenoid - Circuit Short to Battery | ||||||
| C1021-12 | Compact Wheel Loader | Front Rod Solenoid Short to Battery | ||||||
| C1021-13 | Compact Wheel Loader | Front Rod Solenoid Open Circuit | ||||||
| C1021-13 | Toolcat | Front Aux Rod Solenoid - Circuit Open | ||||||
| C1021-19 | Compact Wheel Loader | Front Rod Solenoid Overcurrent | ||||||
| C1021-19 | Toolcat | Front Aux Rod Solenoid - Circuit Current Above Threshold | ||||||
| C1024-11 | Toolcat | Diverter Solenoid - Circuit Short to Ground | ||||||
| C1024-12 | Toolcat | Diverter Solenoid - Circuit Short to Battery | ||||||
| C1024-13 | Toolcat | Diverter Solenoid - Circuit Open | ||||||
| C1026-11 | Toolcat | Remote Hydraulics Output - Circuit Short to Ground | ||||||
| C1026-12 | Toolcat | Remote Hydraulics Output - Circuit Short to Battery | ||||||
| C1026-13 | Toolcat | Remote Hydraulics Output - Circuit Open | ||||||
| C1029-11 | M-Series Loader | Hydraulic Lock Solenoid Short to Ground | ||||||
| C1029-12 | M-Series Loader | Hydraulic Lock Solenoid Short to Battery | ||||||
| C1029-13 | M-Series Loader | Hydraulic Lock Solenoid Open Circuit | ||||||
| C102A-11 | Compact Wheel Loader | Hydraulic Fan Short to Ground | ||||||
| C102A-11 | Toolcat | Hydraulic Fan Solenoid - Circuit Short to Ground | ||||||
| C102A-12 | Toolcat | Hydraulic Fan Solenoid - Circuit Short to Battery | ||||||
| C102A-12 | Compact Wheel Loader | Hydraulic Fan Short to Battery | ||||||
| C102A-13 | Compact Wheel Loader | Hydraulic Cooling Fan Electrical Problem | ||||||
| C102A-13 | Toolcat | Hydraulic Fan Solenoid - Circuit Open | ||||||
| C102A-19 | Toolcat | Hydraulic Fan Solenoid - Circuit Current Above Threshold | ||||||
| C102A-19 | Compact Wheel Loader | Hydraulic Fan Overcurrent | ||||||
| C102B-11 | M-Series Loader | Reverse Fan Short to Ground | ||||||
| C102B-12 | M-Series Loader | Reverse Fan Short to Battery | ||||||
| C102B-13 | M-Series Loader | Reverse Fan Open Circuit | ||||||
| C102E-12 | Small Articulated Loader | Fan Circuit Short to Battery | ||||||
| C102E-14 | Small Articulated Loader | Fan Open Circuit | ||||||
| C1030-00 | M-Series Loader | Two Speed Shift Not Allowed | ||||||
| C1032-11 | M-Series Loader | Brake Pull Output Short to Ground | ||||||
| C1032-12 | M-Series Loader | Brake Pull Output Short to Battery | ||||||
| C1032-13 | M-Series Loader | Brake Pull Output Open Circuit | ||||||
| C1033-11 | M-Series Loader | Left Brake Hold Output Short to Ground | ||||||
| C1033-12 | M-Series Loader | Left Brake Hold Output Short to Battery | ||||||
| C1033-13 | M-Series Loader | Left Brake Hold Output Open Circuit | ||||||
| C1034-11 | M-Series Loader | Right Brake Hold Output Short to Ground | ||||||
| C1034-12 | M-Series Loader | Right Brake Hold Output Short to Battery | ||||||
| C1034-13 | M-Series Loader | Right Brake Hold Output Open Circuit | ||||||
| C1035-16 | M-Series Loader | Left Brake Pull Relay Error Off | ||||||
| C1035-17 | M-Series Loader | Left Brake Pull Relay Error On | ||||||
| C1036-16 | M-Series Loader | Right Brake Pull Relay Error Off | ||||||
| C1036-17 | M-Series Loader | Right Brake Pull Relay Error On | ||||||
| C1039-11 | Toolcat | High Flow Solenoid - Circuit Short to Ground | ||||||
| C1039-11 | Compact Wheel Loader | High Flow Solenoid Short to Ground | ||||||
| C1039-12 | Toolcat | High Flow Solenoid - Circuit Short to Battery | ||||||
| C1039-12 | Compact Wheel Loader | High Flow Solenoid Short to Battery | ||||||
| C1039-13 | Compact Wheel Loader | High Flow Solenoid Open Circuit | ||||||
| C1039-13 | Toolcat | High Flow Solenoid - Circuit Open | ||||||
| C1039-19 | M-Series Loader | High Flow Solenoid Overcurrent | ||||||
| C103A-11 | M-Series Loader | Ride Control 1 Short to Ground | ||||||
| C103A-12 | M-Series Loader | Ride Control 1 Short to Battery | ||||||
| Code | Product | Description | ||||||
| C103A-13 | M-Series Loader | Ride Control 1 Open Circuit | ||||||
| C103B-11 | M-Series Loader | Ride Control 2 Short to Ground | ||||||
| C103B-12 | M-Series Loader | Ride Control 2 Short to Battery | ||||||
| C103B-13 | M-Series Loader | Ride Control 2 Open Circuit | ||||||
| C103C-11 | M-Series Loader | Bobtach Engage Short to Ground | ||||||
| C103C-11 | Toolcat | Bobtach Engage Solenoid - Circuit Short to Ground | ||||||
| C103C-12 | M-Series Loader | Bobtach Engage Short to Battery | ||||||
| C103C-12 | Toolcat | Bobtach Engage Solenoid - Circuit Short to Battery | ||||||
| C103C-13 | Toolcat | Bobtach Engage Solenoid - Circuit Open | ||||||
| C103C-13 | M-Series Loader | Bobtach Engage Open Circuit | ||||||
| C103D-11 | Toolcat | Bobtach Disengage Solenoid - Circuit Short to Ground | ||||||
| C103D-11 | M-Series Loader | Bobtach Disengage Short to Ground | ||||||
| C103D-12 | Toolcat | Bobtach Disengage Solenoid - Circuit Short to Battery | ||||||
| C103D-12 | M-Series Loader | Bobtach Disengage Short to Battery | ||||||
| C103D-13 | M-Series Loader | Bobtach Disengage Open Circuit | ||||||
| C103D-13 | Toolcat | Bobtach Disengage Solenoid - Circuit Open | ||||||
| C1040-11 | M-Series Loader | Lift Actuator Short to Ground | ||||||
| C1040-12 | M-Series Loader | Lift Actuator Short to Battery | ||||||
| C1040-13 | M-Series Loader | Lift Actuator Open Circuit | ||||||
| C1040-19 | M-Series Loader | Lift Actuator Overcurrent | ||||||
| C1040-77 | M-Series Loader | Lift Actuator Reduced Performance | ||||||
| C1041-00 | M-Series Loader | Lift Spool Position Sensor Inverted Movement | ||||||
| C1042-00 | M-Series Loader | Lift Actuator Uncommanded Motion | ||||||
| C1043-11 | Compact Wheel Loader | Lift Cylinder Base Short to Ground | ||||||
| C1043-12 | Compact Wheel Loader | Lift Cylinder Base Short to Battery | ||||||
| C1043-13 | Compact Wheel Loader | Lift Cylinder Base Open Circuit | ||||||
| C1043-19 | Compact Wheel Loader | Lift Cylinder Base Overcurrent | ||||||
| C1044-11 | Compact Wheel Loader | Lift Cylinder Rod Short to Ground | ||||||
| C1044-12 | Compact Wheel Loader | Lift Cylinder Rod Short to Battery | ||||||
| C1044-13 | Compact Wheel Loader | Lift Cylinder Rod Open Circuit | ||||||
| C1044-19 | Compact Wheel Loader | Lift Cylinder Rod Overcurrent | ||||||
| C1045-11 | M-Series Loader | Tilt Actuator Short to Ground | ||||||
| C1045-12 | M-Series Loader | Tilt Actuator Short to Battery | ||||||
| C1045-13 | M-Series Loader | Tilt Actuator Open Circuit | ||||||
| C1045-19 | M-Series Loader | Tilt Actuator Overcurrent | ||||||
| C1045-77 | M-Series Loader | Tilt Actuator Reduced Performance | ||||||
| C1046-00 | M-Series Loader | Tilt Spool Position Sensor Inverted Movement | ||||||
| C1047-00 | M-Series Loader | Tilt Actuator Uncommanded Motion | ||||||
| C1048-11 | Compact Wheel Loader | Tilt Cylinder Rod Short to Ground | ||||||
| C1048-12 | Compact Wheel Loader | Tilt Cylinder Rod Short to Battery | ||||||
| C1048-13 | Compact Wheel Loader | Tilt Cylinder Rod Open Circuit | ||||||
| C1048-19 | Compact Wheel Loader | Tilt Cylinder Rod Overcurrent | ||||||
| C1049-11 | Compact Wheel Loader | Tilt Cylinder Base Short to Ground | ||||||
| C1049-12 | Compact Wheel Loader | Tilt Cylinder Base Short to Battery | ||||||
| C1049-13 | Compact Wheel Loader | Tilt Cylinder Base Open Circuit | ||||||
| C1049-19 | Compact Wheel Loader | Tilt Cylinder Base Overcurrent | ||||||
| C104A-00 | M-Series Loader | Lift Float Failed to achieve float | ||||||
| C104B-00 | M-Series Loader | Lift Float Conditions not favorable | ||||||
| C104C-00 | M-Series Loader | Lift Float Failed to maintain float | ||||||
| C1050-11 | Compact Wheel Loader | Switched Power Relay Short to Ground | ||||||
| C1050-12 | Toolcat | Switched Power Output - Circuit Short to Battery | ||||||
| C1050-12 | Compact Wheel Loader | Switched Power Relay Short to Battery | ||||||
| Code | Product | Description | ||||||
| C1050-13 | Compact Wheel Loader | Switched Power Relay Open Circuit | ||||||
| C1050-14 | Toolcat | Switched Power Output - Circuit Short to Ground or Open | ||||||
| C1050-15 | Small Articulated Loader | Switched Power Relay Short to Battery or Open Circuit | ||||||
| C1051-11 | M-Series Loader | Two Speed Solenoid Short to Ground | ||||||
| C1051-11 | Toolcat | Two Speed Solenoid - Circuit Short to Ground | ||||||
| C1051-12 | M-Series Loader | Two Speed Solenoid Short to Battery | ||||||
| C1051-12 | Toolcat | Two Speed Solenoid - Circuit Short to Battery | ||||||
| C1051-13 | Toolcat | Two Speed Solenoid - Circuit Open | ||||||
| C1051-13 | M-Series Loader | Two Speed Solenoid Open Circuit | ||||||
| C1051-19 | M-Series Loader | Two Speed Solenoid Overcurrent | ||||||
| C1060-11 | Compact Wheel Loader | Brake Short to Ground | ||||||
| C1060-11 | Small Articulated Loader | Brake Solenoid Short to Ground | ||||||
| C1060-12 | Small Articulated Loader | Brake Solenoid Short to Battery | ||||||
| C1060-12 | Compact Wheel Loader | Brake Short to Battery | ||||||
| C1060-13 | Small Articulated Loader | Brake Solenoid Open Circuit | ||||||
| C1060-13 | Compact Wheel Loader | Brake Open Circuit | ||||||
| C1060-19 | Compact Wheel Loader | Brake Solenoid Overcurrent | ||||||
| C1061-11 | Toolcat | Brake 1 Solenoid - Circuit Short to Ground | ||||||
| C1061-12 | Toolcat | Brake 1 Solenoid - Circuit Short to Battery | ||||||
| C1061-13 | Toolcat | Brake 1 Solenoid - Circuit Open | ||||||
| C1061-19 | Toolcat | Brake 1 Solenoid - Circuit Current Above Threshold | ||||||
| C1062-11 | Toolcat | Brake 2 Solenoid - Circuit Short to Ground | ||||||
| C1062-12 | Toolcat | Brake 2 Solenoid - Circuit Short to Battery | ||||||
| C1062-13 | Toolcat | Brake 2 Solenoid - Circuit Open | ||||||
| C1062-19 | Toolcat | Brake 2 Solenoid - Circuit Current Above Threshold | ||||||
| C1070-11 | M-Series Loader | Rear Auxiliary Base Solenoid Short to Ground | ||||||
| C1070-12 | M-Series Loader | Rear Auxiliary Base Solenoid Short to Battery | ||||||
| C1070-13 | M-Series Loader | Rear Auxiliary Base Solenoid Open Circuit | ||||||
Producent
Bobcat
Bobcat
TL25.60, V519, V623, V638, V723, V918, V923, VR518, V530C, VR638, VR723, TL30.60, TL30.70, TL34.65HF, TL38.70, TL38.70HF, TL43.80, V417, A-series, A220, A300, A770, B-series, BL-series, CT-series, DX10z, DX19, DZ17z, E-series, E08, E10, E10e, E14, E145, E16, E165, E17, E17z, E18z, E19, E19e, E20, E27, E27z, E30, E32, E32i, E34, E35, E35i, E35z, E37, E38, E40, E42, E45, E48, E50, E50z, E55, E55w, E55z, E60, E62, E63, E80, E85, E88, R-series, S-series, S100, s130, S150, S16, S175, S185, S205, S220, S250, S300, S330, S450, S510, S530, S550, S570, S590, S595, S630, S650, S740, S750, S770, S850, T-series, T110, T140, T180, T190, T200, T2250, T250, T2556, T300, T320, T35.105, T35.105L, T35.130S, T35.130SLP, T35.140S, T35100, T35105, T35130, T35140, T3571, T36120, T40140, T40170, T40180, T41.140, T450, T550, T590, T595, T630, T650, T740, T750, T770, T870, TD-series, TL-series, TL26.60, TL34.65, TL35.70, TL358, TL360, TL470, TL519, V-series, V518, VR-series, VR530, X-series, X100, X116, X130, X220, X225, X231, X316, X319, X320, X321, X322, X323, X324, X325, X328, X331, X334, X335, X337, X341, X418, X425, X428, X430, X435, X442, X444, ZX125, ZX75, 553, 641, 642, 643, 645, 653, 741, 742, 743, 751, 753, 763, 773, 843, 853, 863, 864, 873, 883, 963, 2200, 2400, 2410
Jeśli chcesz kupić bobcat Machine Diagnostic Service & Fault Codes - #C-codes (p1) , możesz:
Połączenie:
